Gamon's Pyrolamas® Sliding System
Pyrolamas® can be adapted to the needs of any pyrotechnic show.
/ 01
WHAT ARE PYROLAMAS®?
The patented Pyrolamas® System consists of a completely new concept for orienting single-shot tubes for the pyrotechnic industry.
This new concept is mainly based on multiconfiguration idea. It allows a pyrotechnician, with only a few simple elements, to mount any setup for single shots, both bi-dimensional and tri-dimensional. Pyrolamas® can be adapted to the needs of any pyrotechnic show. This system can be unassembled and reassembled as many times as needed.
Pyrolamas® allows pyrotechnicians to substitute bulky and heavy racks with one system. It provides significant cost saving in rigs, due to its versatility, and in transport and storage because of its weight and volume reduction. It completely eliminates the underutilized racks that remain stored for long time periods, occupying valuable space.
/ 02
Pyrolamas® Gamon Parts
The Multi Modular Pyro Rack!
These are the different elements that conforms our system Pyrolamas®. Choose those who better fits your requirements, and be calm, if you later have another requirements, you will can use what you already have, extending its possibilities with only few extra elements.
Looking for something specific? Contact our sales team today.
North America
T: 256-725-4224
E: [email protected]
Europe
T: +49 (0)151 42 41 8453
E: [email protected]
Aluminum Profile
Product Code: CPH8000
Aluminum Profile: 39145 W38 A15
Dimensions:
W=38 mm A=15° Length 450 mm
Product Code: CPH8001
Aluminum Profile: 39155 W38 A30
Dimensions:
W=38 mm A=30° Length 550 mm

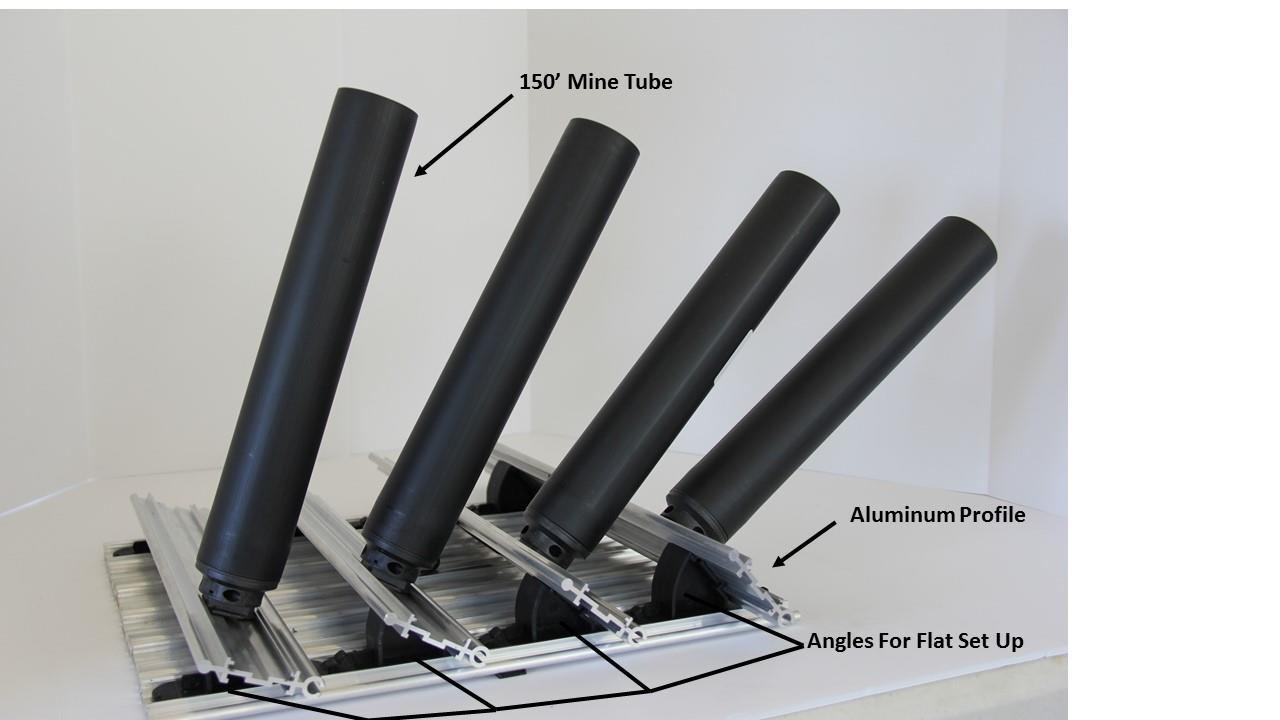

Angles for Flat Set-up
Product Code: CPH8004
Product Name: Angles for flat set up (0 Degree)
Dimensions:
CPH-8004 A= 0°/90° Vertical
Product Code: CPH8005
Product Name: Angles for flat set up (10 Degree)
Dimensions: CPH-8005 A= 10°/80° Vertical
Product Code: CPH8006
Product Name: Angles for flat set up (15 Degree)
Dimensions:
CPH-8006 A= 15°/75° Vertical
Product Code: CPH8007
Product Name: Angles for flat set up (20 Degree)
Dimensions:
CPH-8007 A= 20°/70° Vertical
Product Code: CPH8008
Product Name: Angles for flat set up (30 Degree)
Dimensions:
CPH-8008 A= 30°/60° Vertical
Product Code: CPH8009
Product Name: Angles for flat set up (40 Degree)
Dimensions:
CPH-8009 A= 40°/50° Vertical
Product Code: CPH8010
Product Name: Angles for flat set up (45 Degree)
Dimensions:
CPH-8010 A=45°
Product Code: CPH8011
Product Name: Angles for flat set up (50 Degree)
Dimensions:
CPH-8011 A= 50°/40° Vertical
Product Code: CPH8012
Product Name: Angles for flat set up (60 Degree)
Dimensions:
CPH-8012 A=60°/30° Vertical
Product Code: CPH8013
Product Name: Angles for flat set up (70 Degree)
Dimensions:
CPH-8013 A= 70°/20° Vertical
Product Code: CPH8014
Product Name: Angles for flat set up (80 Degree)
Dimensions:
CPH-8014 A= 80°/10° Vertical
Accessories
Product Code: CPH2000
Product Name: PL Pyro Adapter
Attach single shots with the foot of 40x40x3 mm onto aluminium profile widths.
Product Code: CPH8021
Product Name: Stopper 39101
Very useful for holding the angles in place. Compatible with both profile wides.
Product Code: CPH8022
Product Name: Locking Device 39100 PE
Installed at the bottom of each profile. It prevents slippage between them.
Product Code: CPH8023
Product Name: X Holder 3900 X
Use with both profiles, for attaching to single-shots with a cable tie.
Big Caliber Reinforcement
Product Code: CPH8015
Product Name: Big Caliber Reinforcement 39107 R
Product Code: PH8016
Product Name: Big Caliber Reinforcement 39109 R
/ 03
Pyrolamas® Gamon Sliding Systems
North America Products
Parts & Components
| Product # | Name |
|---|---|
| CPH8000 | Aluminum Profile 39145 W38 A15 12″ |
| CPH8001 | Aluminum Profile 39155 W38 A30 21″ |
| CPH8004 | Angles for flat set up (0 Degree) |
| CPH8005 | Angles for flat set up (10 Degree) |
| CPH8006 | Angles for flat set up (15 Degree) |
| CPH8007 | Angles for flat set up (20 Degree) |
| CPH8008 | Angles for flat set up (30 Degree) |
| CPH8009 | Angles for flat set up (40 Degree) |
| CPH8010 | Angles for flat set up (45 Degree) |
| CPH8011 | Angles for flat set up (50 Degree) |
| CPH8012 | Angles for flat set up (60 Degree) |
| CPH8013 | Angles for flat set up (70 Degree) |
| CPH8014 | Angles for flat set up (80 Degree) |
| CPH2000 | PL Pyro Adapter |
| CPH8021 | Stopper 39101 |
| CPH8022 | Locking Device 39100 PE |
| CPH8023 | X Holder 3900 X |
| CPH8015 | Big Caliber Reinforcement 39107 R |
| CPH8016 | Big Caliber Reinforcement 39109 R |
| CPH8017 | Support Ribs 39103 SO 9753 |
| CPH8018 | Support Ribs 39103 SO 53 |
| CPH8019 | Support Ribs 39103 SO 75 3-30 |
| CPH8020 | Support Ribs 39103 SO 3-30 |
Specifications
Aluminum Profile
Angles For Flat Set Up
Stoppers – Locking Devices – Holders – Adapters
Big Caliber Reinforcements
Support Ribs
Government
| Product # | Name | CE (DE/EN) | BAM # | NARCAN | Ex # |
|---|---|---|---|---|---|
| CPH8000 | Aluminum Profile 39145 W38 A15 12″ | No | |||
| CPH8001 | Aluminum Profile 39155 W38 A30 21″ | No | |||
| CPH8004 | Angles for flat set up (0 Degree) | No | |||
| CPH8005 | Angles for flat set up (10 Degree) | No | |||
| CPH8006 | Angles for flat set up (15 Degree) | No | |||
| CPH8007 | Angles for flat set up (20 Degree) | No | |||
| CPH8008 | Angles for flat set up (30 Degree) | No | |||
| CPH8009 | Angles for flat set up (40 Degree) | No | |||
| CPH8010 | Angles for flat set up (45 Degree) | No | |||
| CPH8011 | Angles for flat set up (50 Degree) | No | |||
| CPH8012 | Angles for flat set up (60 Degree) | No | |||
| CPH8013 | Angles for flat set up (70 Degree) | No | |||
| CPH8014 | Angles for flat set up (80 Degree) | No | |||
| CPH2000 | PL Pyro Adapter | No | |||
| CPH8021 | Stopper 39101 | No | |||
| CPH8022 | Locking Device 39100 PE | No | |||
| CPH8023 | X Holder 3900 X | No | |||
| CPH8015 | Big Caliber Reinforcement 39107 R | No | |||
| CPH8016 | Big Caliber Reinforcement 39109 R | No | |||
| CPH8017 | Support Ribs 39103 SO 9753 | No | |||
| CPH8018 | Support Ribs 39103 SO 53 | No | |||
| CPH8019 | Support Ribs 39103 SO 75 3-30 | No | |||
| CPH8020 | Support Ribs 39103 SO 3-30 | No |
Europe Products (CE Certified)
Parts & Components
| Product # | Name |
|---|---|
| CPH8001 | Aluminum Profile 39155 W38 A30 |
| CPH2000 | PL Pyro Adapter |
Specifications
Aluminum Profile
Angles For Flat Set Up
Stoppers – Locking Devices – Holders – Adapters
Big Caliber Reinforcements
Support Ribs
Government
| Product # | Name | CE (DE/EN) | BAM # | NARCAN | Ex # |
|---|---|---|---|---|---|
| CPH8001 | Aluminum Profile 39155 W38 A30 | No | |||
| CPH2000 | PL Pyro Adapter | No |
/ 04
WAtch the Product Video
This is a pre-production demonstration video of Gamon's sliding system
/ 05
Other Hardware
The Gamon Sliding System, Pyro Holders and More
We have a comprehensive catalog of pyro hardware products including the durable, easy-to-use Gamon Sliding System, and a wide range of pyro holders, pyro clips and cables. Contact our sales team today.
